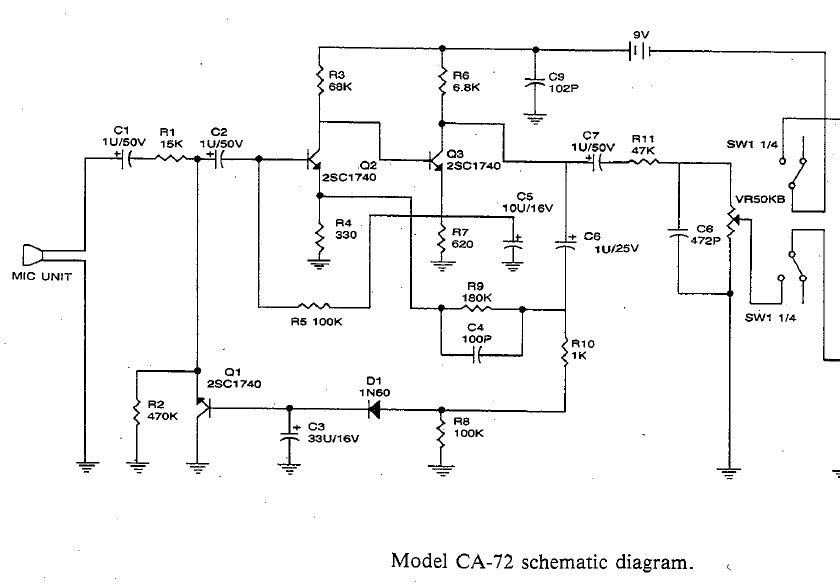

Got any mods for the CA-72 cobra mic? included a schematic
CA-72microphone.pdf
(15.94 KiB) Downloaded 41 times
User avatar
Goldfinger
Site Maintenance
Posts: 2936
Joined: Sat Jun 30, 2007 12:27 am
Location: Beaver State

Re: CA-72

Postby Goldfinger » Mon Oct 03, 2016 5:40 pm

Make C1, C2 and C7 higher in value for more low end.
Play around with the value of the feedback cap C4 to tailor the mids/highs.

wwpdx
wwpdx.com
User avatar
redlght
WWPDX MEMBER
Posts: 189
Joined: Sat Jan 30, 2016 12:44 am

Re: CA-72

Postby redlght » Mon Oct 03, 2016 9:27 pm

Thanks once again
User avatar
Goldfinger
Site Maintenance
Posts: 2936
Joined: Sat Jun 30, 2007 12:27 am
Location: Beaver State

Re: CA-72

Postby Goldfinger » Mon Oct 03, 2016 10:03 pm

You can also slightly change the value of R9 to tailor the response. It mostly enhances low/mids but affects the gain of the whole circuit.
R10 controls the compression.
